The PDC Series is a full-volume horizontal wet media grinding mill engineered to combine pre-grinding and ultra-fine particle size reduction in a single, integrated system. Its design ensures consistent nano-range particle distribution and high throughput across demanding industrial applications.

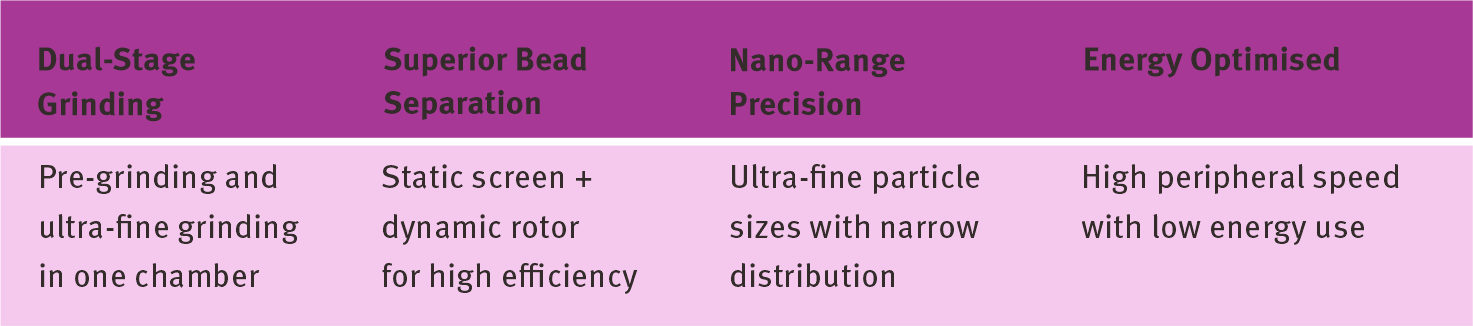

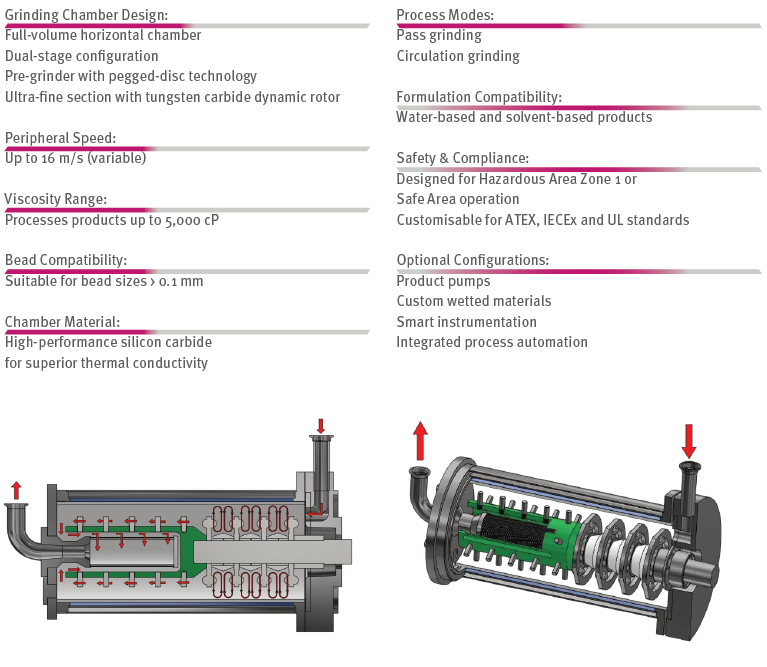

Its dual-stage grinding chamber features a pre-grinder with IEC+’s pegged-disc technology and an ultra-fine section equipped with a tungsten carbide pin-fitted dynamic rotor. This configuration delivers precise particle size control while maintaining optimal flow and energy efficiency.

Adaptable to both pass and circulation grinding processes, the PDC Series offers exceptional thermal management, efficient bead separation, and compatibility with water-based and solvent-based formulations, providing repeatable, reliable production under even the most challenging conditions.
